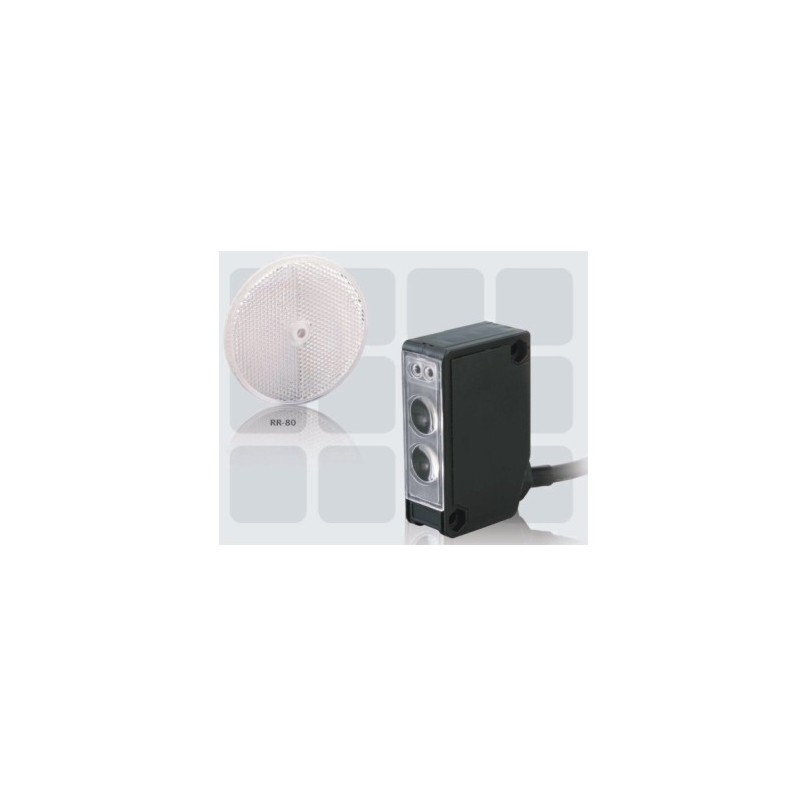

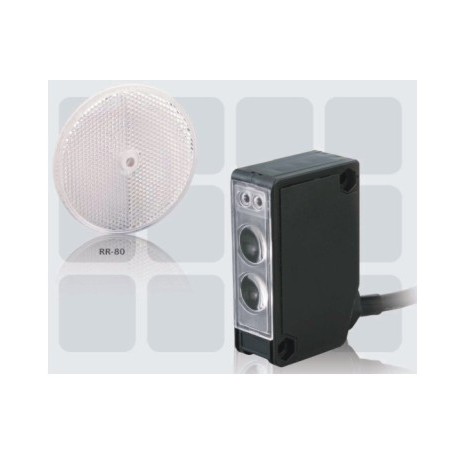

Retro Reflective photo cell switch

IR1000

New product

Photocell - Retro-reflective

 To suit automatic Gates / Garage Doors etc.

Quality, Weatherproof Design

*** Only need to wire one side ***

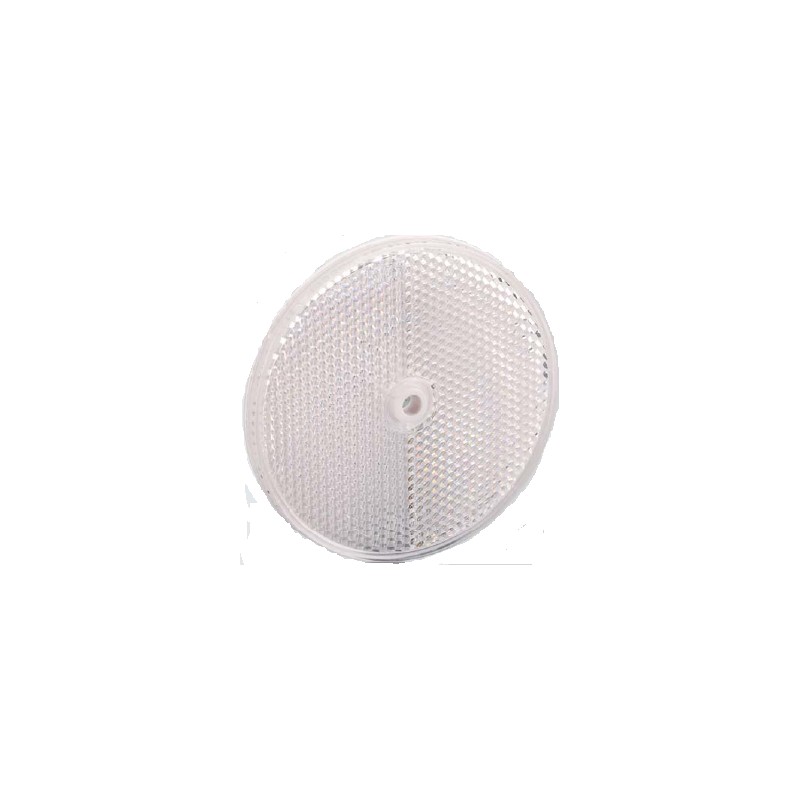

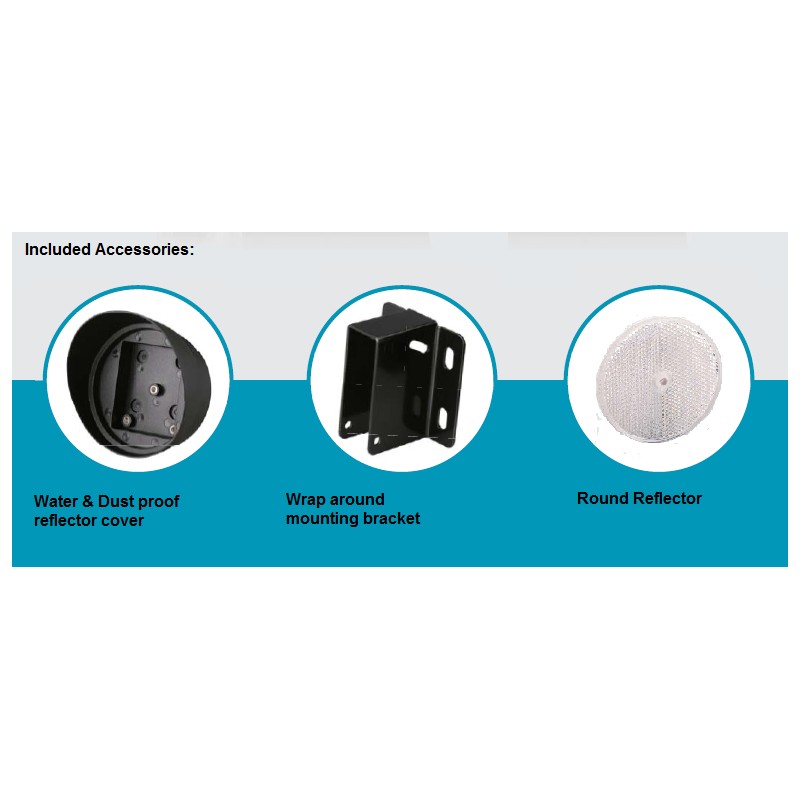

Includes photocell, mounting bracket, reflector &

now includes reflector protective rain/dust cover

12-250V AC or DC input power (Full range universal)



More details

$129.00 tax incl.

Add to wishlist

Amex, Visa or Mastercard
Amex, Visa or Mastercard

More info

Features:



  • - Only requires one side to be wired

  • - Sensing range 10m

  • - Response time 10mSec

  • - Anti Fog / Rain / Dew PC casing

  • - IP-66 Weatherproof

  • - Wrap around mounting bracket

  • - Versatile power input: 12V-250V AC or DC

  • - 2 LED Indicators for Power and Beam Alignment

  • - 1 Year Australian Warranty

Specifications:


Model PCR-1000
Detection Method Retro-Reflective Detection
Sensing range 10 meters
Input voltage
AC / DC 12~250V ±10%
Response time 10 msec.
Sensing Range   up to 10m
Emitting element
IR LED
Power led indicator(RED)
RED (left side); when powered; Led turn on
when power off: Led turn off
Dimensions
20 (W)* 63 (H) *39 (D) mm
Current consumption 80mA
Contact current
3A / 125VAC
Illumination
Lamplight<10,000 Lux; Sunlight<30,000 Lux
Connection Method Cable wires: Brown / Blue / White / Black / Gray (NO and NC outputs)
Noise Resistance
1500 Vp-P/1uS
Housing Material Case: Intensive ABS; Lens: PC
Operating Temp. -20 ℃ ~ 55℃
Water proof IP-66
Safety Standard CE
